My SQL Innodb Cluster Setup

Server List

clota-dbl05

@@version 8.0.32-commercial

192.168.0.156

My SQL root password Secure@123

-------------------------------------------------------------------

ota-dbl06 <cota-dbl06>

@@version 8.0.33

192.168.0.197

My SQL root password Secure@123

-------------------------------------------------------------------

clota-dbl07

192.168.0.195

@@version @@version 8.0.33

My SQL root password Secure@321

-------------------------------------------------------------------

Step 1:

Modify /etc/hosts with IP and server_name  on all the nodes...

Like below

vim /etc/hosts

192.168.0.156   clota-dbl05

192.168.0.197      ota-dbl06

192.168.0.195   clota-dbl07

Open DB Port on all the nodes...

firewall-cmd --add-port={3306}/tcp --permanent
firewall-cmd --reload

Step 2:

Create a DB user allow remote connection on all the 3 nodes.

create user 'i3'@'%' IDENTIFIED BY 'Secure@123';

grant all privileges on *.* to i3;

create user 'i3'@'%' IDENTIFIED BY 'Secure@123';
grant all privileges on *.* to i3;

GRANT CLONE_ADMIN, CONNECTION_ADMIN, CREATE USER, EXECUTE, FILE, GROUP_REPLICATION_ADMIN, PERSIST_RO_VARIABLES_ADMIN, PROCESS, RELOAD, REPLICATION CLIENT, REPLICATION SLAVE, REPLICATION_APPLIER, REPLICATION_SLAVE_ADMIN, ROLE_ADMIN, SELECT, SHUTDOWN, SYSTEM_VARIABLES_ADMIN ON *.* TO 'i3'@'%' WITH GRANT OPTION;
GRANT DELETE, INSERT, UPDATE ON mysql.* TO 'i3'@'%' WITH GRANT OPTION;
GRANT ALTER, ALTER ROUTINE, CREATE, CREATE ROUTINE, CREATE TEMPORARY TABLES, CREATE VIEW, DELETE, DROP, EVENT, EXECUTE, INDEX, INSERT, LOCK TABLES, REFERENCES, SHOW VIEW, TRIGGER, UPDATE ON mysql_innodb_cluster_metadata.* TO 'i3'@'%' WITH GRANT OPTION;
GRANT ALTER, ALTER ROUTINE, CREATE, CREATE ROUTINE, CREATE TEMPORARY TABLES, CREATE VIEW, DELETE, DROP, EVENT, EXECUTE, INDEX, INSERT, LOCK TABLES, REFERENCES, SHOW VIEW, TRIGGER, UPDATE ON mysql_innodb_cluster_metadata_bkp.* TO 'i3'@'%' WITH GRANT OPTION;
GRANT ALTER, ALTER ROUTINE, CREATE, CREATE ROUTINE, CREATE TEMPORARY TABLES, CREATE VIEW, DELETE, DROP, EVENT, EXECUTE, INDEX, INSERT, LOCK TABLES, REFERENCES, SHOW VIEW, TRIGGER, UPDATE ON mysql_innodb_cluster_metadata_previous.* TO 'i3'@'%' WITH GRANT OPTION;

flush privileges;

Test Connection:

mysql -u i3 -h DB_Server --socket=/var/lib/mysql/mysql.sock -p

Step 3:

Bind IP Address and update the port

Update my.cnf with below parameter...

bind-address=0.0.0.0

port=3306

Step 4:

MySQL Shell Installation

# yum install mysql-shell

On clota-dbl05

dba.configureInstance('i3@192.168.0.196:3306');

On ota-dbl06

dba.configureInstance('i3@192.168.0.197:3306');

On clota-dbl07

dba.configureInstance('i3@192.168.0.195:3306');

Step 5:

Create Cluster

shell.connect('i3@192.168.0.196:3306');

var cluster =dba.createCluster('ProdCluster')

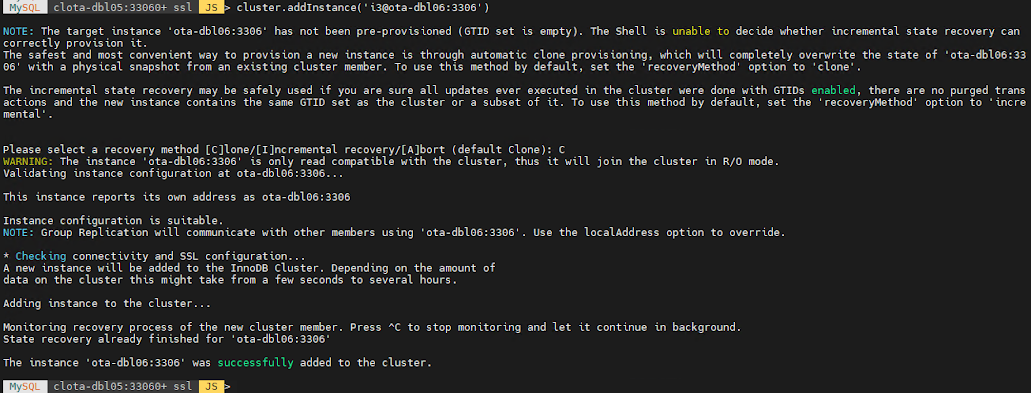

Cluster.addInstance('i3@192.168.0.197:3306')

Cluster.addInstance('i3@192.168.0.195:3306')

cluster.status()

cluster.describe()

select MEMBER_HOST,MEMBER_PORT,MEMBER_STATE,MEMBER_ROLE,MEMBER_COMMUNICATION_STACK,MEMBER_VERSION from replication_group_members;

Connect to Cluster Using Shell

# mysqlsh

MySQL  JS > shell.connect('i3@clota-dbl05:3306')

var cluster = dba.getCluster();

cluster.getName()

cluster.status();

Index in MySQL

Index Info...

SELECT DISTINCT     TABLE_NAME, INDEX_NAME,COLUMN_NAME, index_type FROM INFORMATION_SCHEMA.STATISTICS WHERE TABLE_SCHEMA ='thinklouder_optimization';

SHOW INDEXES FROM table_name IN database_name;

------------------------------------------------------

OPTIMIZE TABLE tbl;

will rebuild the indexes and do ANALYZE; it takes time.

------------------------------------------------------

ANALYZE TABLE tbl;

is fast for InnoDB to rebuild the stats. With 5.6.6 it is even less needed.

------------------------------------------------------

Read the article

https://www.thegeekstuff.com/2016/04/mysql-optimize-table/

Deterministic and Nondeterministic Functions

Deterministic functions:

Deterministic functions always result in the same output every time they are called with a fixed set of input values and given the same condition of the database.

For example, AVG() function always results the same result given the qualifications stated above.

Nondeterministic functions:

Nondeterministic functions result in different output each time they are called with a fixed set of input values even if the database state that they access remains the same.

For example, GETDATE() function, results the current date and time value, always a different value.

Consider a statement that deletes one hundred rows of a one-thousand-row table with no ORDER BY clause. If the rows are ordered differently between source and replica, you may delete a different one hundred rows on each, leading to inconsistencies.

Out of Memory Killer in Linux OS

In Linux systems, MySQL generally has a concept called Out of Memory killer OOM controlled by the kernel. This is to prevent the possible runaway process in OS to avoid race conditions and a server crash.

Since MySQL and its optimized memory buffers are memory hogs, the OS may often kill the mysqld process to avert a system-wide crash if not adjusted.

We can control how much memory MySQL should allocate from the operating system.

Still, if OOM kicks in, it’s possible to configure on system level or altogether disable it.

$ pidof mysqld

35043

$ sudo cat /proc/35043/oom_score

34

$ sudo echo -100 > /proc/34643/oom_score_adj

$ sudo cat /proc/24643/oom_score

0

MySQL master - slave replication setup

 Hi guys, I hope you are doing great. Today here I am going to explain about MySQL master – slave replication setup.

For the setup I have two servers clota-labl01 and clota-labl02. Here on clota-labl01 I am going to setup master and clota-labl02 as slave DB.

Connect master server…

++++++++++++++++++++

clota-labl01

++++++++++++++++++++



my.cnf configuration…

=================

[mysqld]

server-id=100

bind-address=192.168.0.158

log_bin=mysql-bin

datadir=/var/lib/mysql

socket=/var/lib/mysql/mysql.sock

log-error=/var/log/mysqld.log

pid-file=/var/run/mysqld/mysqld.pid

relay-log=/var/log/mysql_slave/relay-bin

## "relay-log" is only for slave. We can skip if the server is serving as primary.



Note: log_bin parameter, enables binary logging. With binary logging enabled, the server logs all statements that change data to the binary log, which is used for backup and replication. The binary log is a sequence of files with a base name and numeric extension

Backup dump creation…

mysqldump -u root -p --source-data=2 -f  i3 > /tmp/i3_final_bkp__111.sql



create a user for replication…

Create USER 'repl'@'%' IDENTIFIED WITH mysql_native_password BY 'Lucknow@123';

GRANT REPLICATION SLAVE ON *.* TO 'repl'@'%';



Check master position..

mysql> show master status \G

*************************** 1. row ***************************

        File: mysql-bin.000002

        Position: 3230

                                Binlog_Do_DB:

                                Binlog_Ignore_DB:

                                Executed_Gtid_Set:





Connect Slave Server

++++++++++++++++++++

clota-labl02

++++++++++++++++++++

my.cnf configuration…

my.cnf

=================

[mysqld]

server-id=101

bind-address=192.168.0.159

datadir=/var/lib/mysql

socket=/var/lib/mysql/mysql.sock

log-error=/var/log/mysqld.log

pid-file=/var/run/mysqld/mysqld.pid

log_bin=mysql_bin_log

relay-log=/var/log/mysql_slave/relay-bin

replicate-do-table=i3.all_india_PO_list

replicate-do-table=i3.emp



Restore DB dump...

mysql -u root -p i3 -vv < /root/i3_final_bkp__111.sql



Setup replication….

mysql> CHANGE MASTER TO MASTER_HOST='192.168.0.158',MASTER_USER='repl', MASTER_PASSWORD='Lucknow@123', MASTER_LOG_FILE='mysql-bin.000002', MASTER_LOG_POS=3230, source_port=3306 ;



Start Stave

mysql> start slave;



Check Replication Status

mysql> show replica status \G

*************************** 1. row ***************************

             Replica_IO_State: Waiting for source to send event

                  Source_Host: 192.168.0.158

                  Source_User: repl

                  Source_Port: 3306

                Connect_Retry: 60

              Source_Log_File: mysql-bin.000002

          Read_Source_Log_Pos: 3230

               Relay_Log_File: relay-bin.000002

                Relay_Log_Pos: 1894

        Relay_Source_Log_File: mysql-bin.000002

           Replica_IO_Running: Yes

          Replica_SQL_Running: Yes

              Replicate_Do_DB:

          Replicate_Ignore_DB:

           Replicate_Do_Table: i3.all_india_PO_list,i3.emp

       Replicate_Ignore_Table:

      Replicate_Wild_Do_Table:

  Replicate_Wild_Ignore_Table:

                   Last_Errno: 0

                   Last_Error:

                 Skip_Counter: 0

          Exec_Source_Log_Pos: 3230

              Relay_Log_Space: 2546

              Until_Condition: None

               Until_Log_File:

                Until_Log_Pos: 0

           Source_SSL_Allowed: No

           Source_SSL_CA_File:

           Source_SSL_CA_Path:

              Source_SSL_Cert:

            Source_SSL_Cipher:

               Source_SSL_Key:

        Seconds_Behind_Source: 0

Source_SSL_Verify_Server_Cert: No

                Last_IO_Errno: 0

                Last_IO_Error:

               Last_SQL_Errno: 0

               Last_SQL_Error:

  Replicate_Ignore_Server_Ids:

             Source_Server_Id: 100

                  Source_UUID: b7efa411-d738-11ec-93b7-000c29dc1823

             Source_Info_File: mysql.slave_master_info

                    SQL_Delay: 0

          SQL_Remaining_Delay: NULL

    Replica_SQL_Running_State: Replica has read all relay log; waiting for more updates

           Source_Retry_Count: 86400

                  Source_Bind:

      Last_IO_Error_Timestamp:

     Last_SQL_Error_Timestamp:

               Source_SSL_Crl:

           Source_SSL_Crlpath:

           Retrieved_Gtid_Set:

            Executed_Gtid_Set:

                Auto_Position: 0

         Replicate_Rewrite_DB:

                 Channel_Name:

           Source_TLS_Version:

       Source_public_key_path:

        Get_Source_public_key: 0

            Network_Namespace:



Every thing looks great here.

Important Replication Commands...

To know the master position:-

show master status \G

Output

File: mysql_bin_log.000002

Position: 157

Binlog_Do_DB:

Binlog_Ignore_DB:

Executed_Gtid_Set:

Set Replication:-

CHANGE REPLICATION
SOURCE TO
SOURCE_HOST='source_ip_address',
SOURCE_PORT = port_num,
SOURCE_USER='replica_account_name',
SOURCE_PASSWORD='REPLICA_PASSWORD',
SOURCE_LOG_FILE='log_file_name',
SOURCE_LOG_POS=log_position;

START REPLICA;

SHOW REPLICA STATUS \G;

STOP REPLICA;

RESET REPLICA;

Makes the replica forget its position in the source's binary log.

RESET REPLICA ALL;

Reset replication.

 Thank you for reading the blog till end.

 --By Abhishek Yadav...
